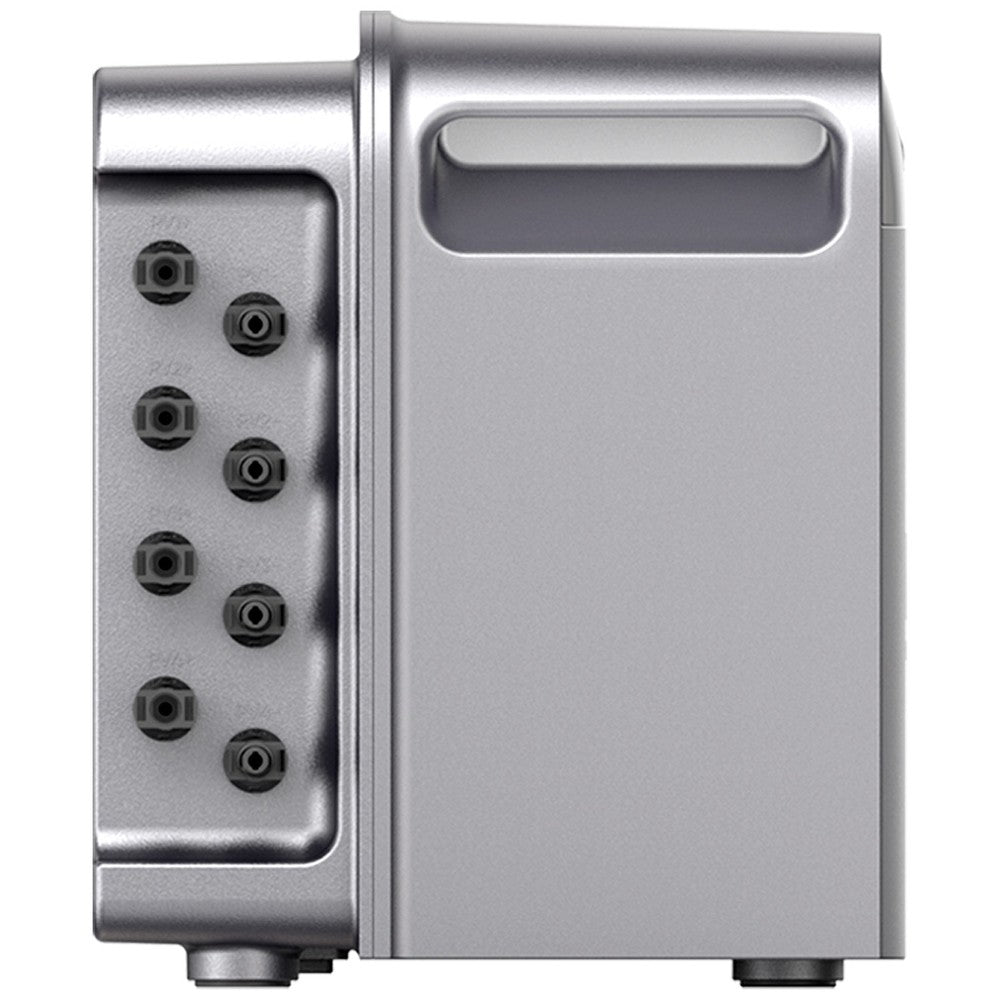

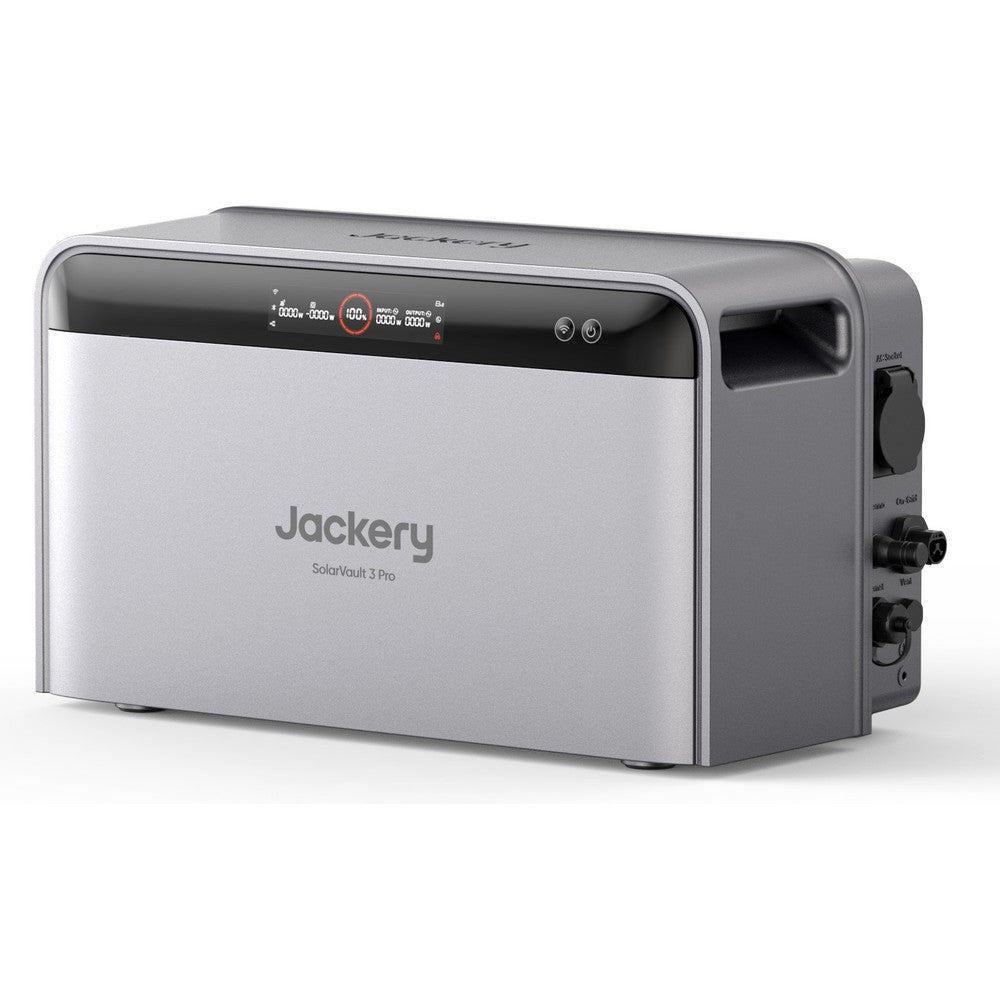

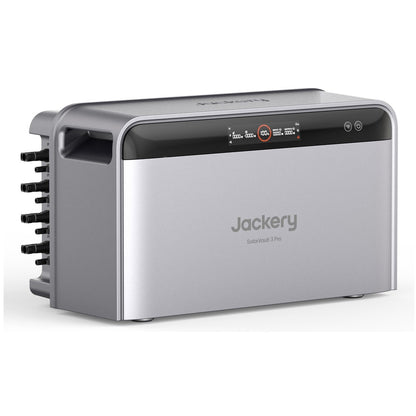

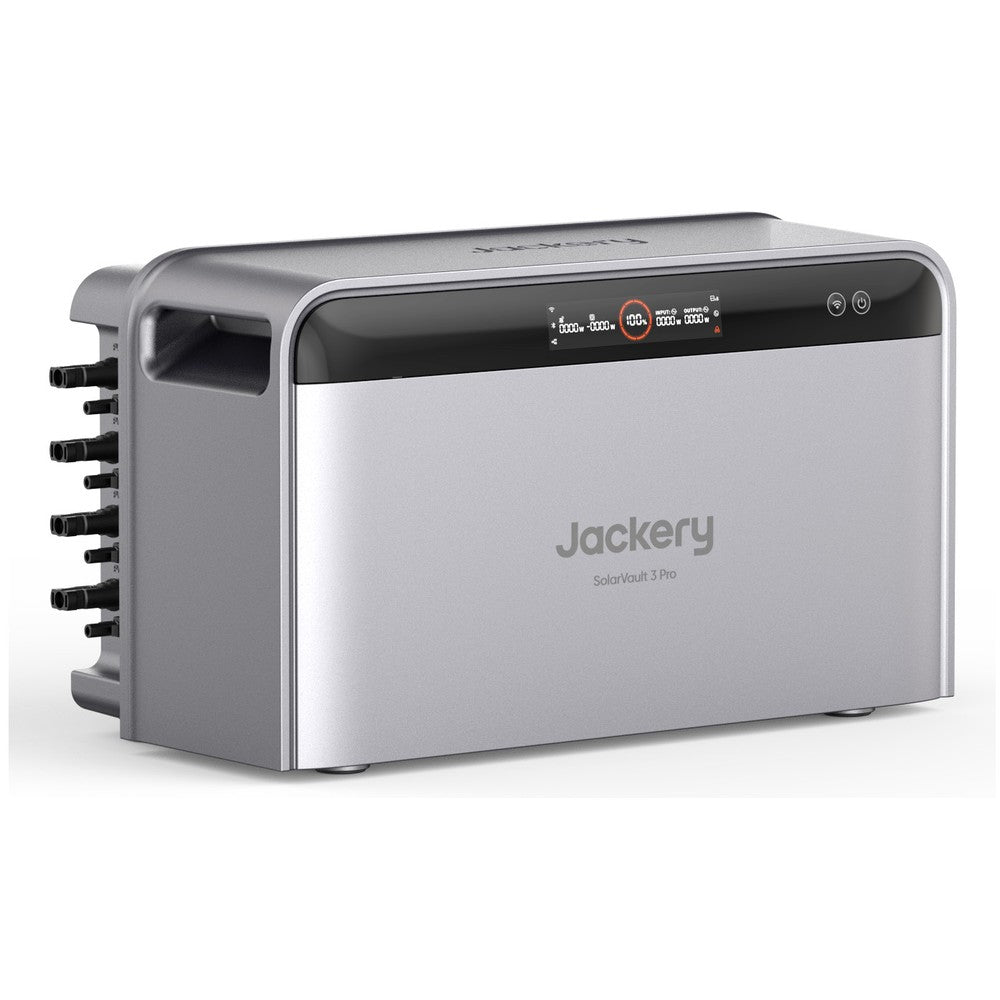

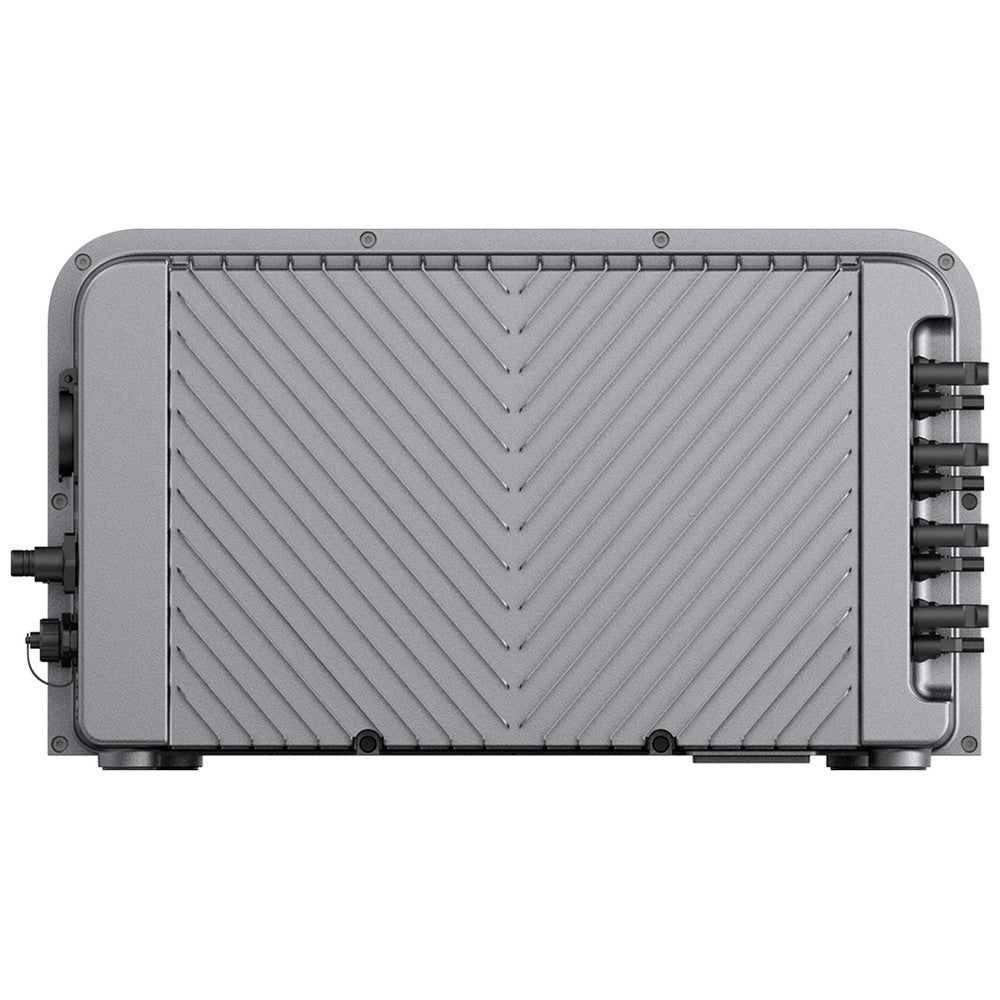

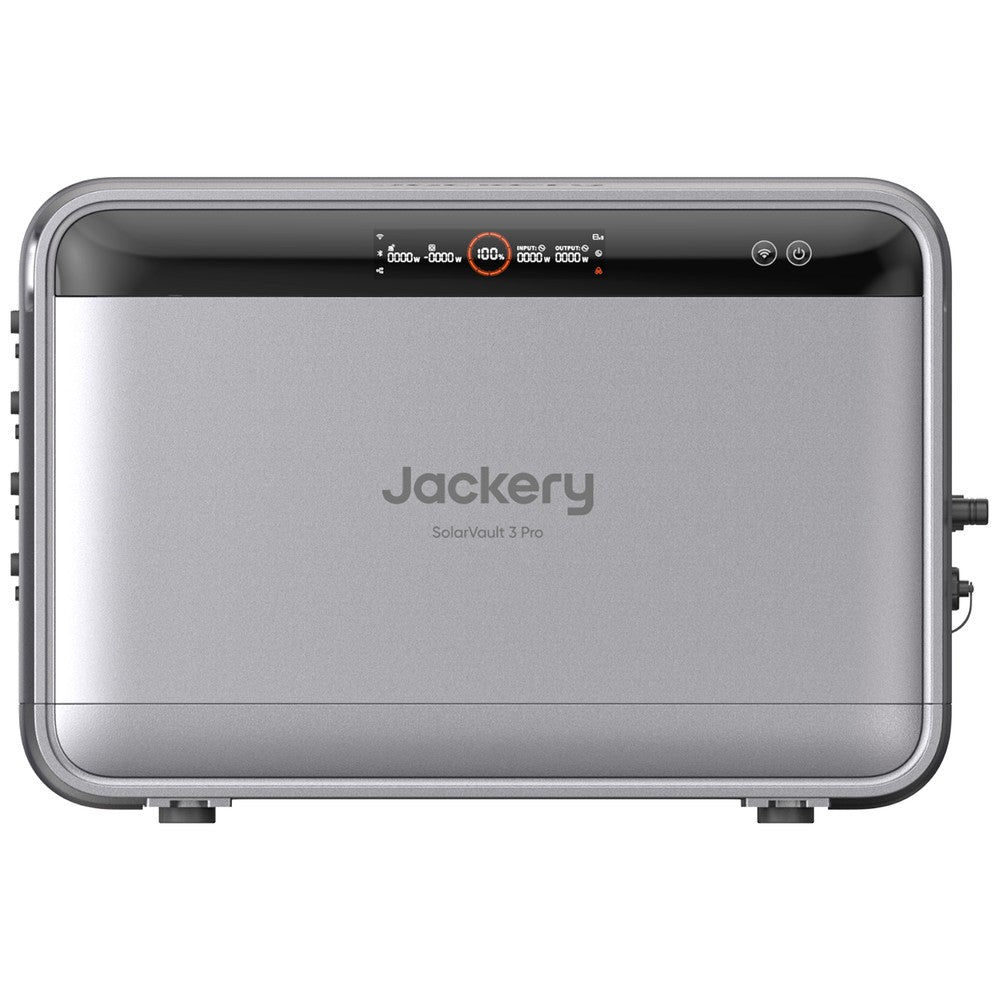

Jackery SolarVault 3 Pro 2520Wh Core Base Power Station

Please note: This product must be hardwired and fitted by a qualified registered electrician.

The Jackery SolarVault 3 Pro 2520Wh Core Base Power Station is a part of a new generation of modular all-in-one solar storage systems. With integrated inverter and LiFePO4 battery technology, the series combines high PV performance, scalable storage, and intelligent energy management in one compact solution. The modular system starts at 2.52 kWh and can be expanded to 15.12 kWh to meet increasing household energy needs.

Designed for versatile integration, the SolarVault 3 Series enables seamless retrofit into existing PV (PhotoVoltaic or solar power system) installations without replacing modules or inverters. SolarVault 3 Pro supports 1,200 W AC coupling. An integrated bypass function allows high-power appliances to operate directly from the grid, and in the event of a power outage, the system switches to backup mode within milliseconds. Excess solar power can be automatically captured and stored, increasing self-consumption without modifying the existing system.

AI-Powered Energy Management and Advanced Safety
At the core of the system is AI-based energy management that analyzes solar generation, consumption, battery status, and dynamic electricity tariffs in real time. Through integration with platforms such as Nordpool, Tibber, and Rabot, the system charges during low-price periods and discharges during peak tariffs to optimize energy costs.

Safety and durability are ensured through LFP battery cells, comprehensive protection mechanisms, temperature monitoring, aerosol fire suppression, and IP65-rated housing for operation from 20 C to 55 C. The Jackery app provides real-time monitoring and energy optimization features.

Specifications
PV Input
Max. Input Power: 1000W*4
Max. Input Voltage: 60 Vd.c.
Max. Input Current: 28A*4
Max. Short Circuit Current: 32A*4
Operation Voltage Range: 16~60Vd.c.

Battery
Battery Type: Lithium Iron Phosphate
Battery Rated Voltage: 41.6Vd.c.
Battery Voltage Range: 32.5~ 45.5Vd.c.
Max. Charging/Discharging Current: 46A/48.8A
IEC Code: IFpR41/136/[3P13S]M/-20+50/90
Total Energy: 2520Wh
Total Capacity: 60.6Ah

AC Input/Output (On-Grid Terminal)
Max. AC Input/Output Power: 800W
Max. AC Input/Output Apparent Power: 800VA
Max. AC Input/Output Current: 3.5A
Rated Voltage/Frequency: L+N+PE230Va.c.50Hz
Power Factor Range: -0.8~+0.8
Max. AC Input Power (Bypass mode): 2300W
Max. AC Input Current (Bypass mode): 10A

AC Input/Output (Off-Grid Terminal)
Max. AC Input Apparent Power: 1200W
Max. AC Input Apparent Power: 1200VA
Max. AC Input Current: 5.2A
Max. AC Output Apparent Power: 1200W
Max. AC Output Apparent Power: 1200VA
Max. AC Output Current: 5.2A
Rated Voltage/Frequency: L+N+PE230Va.c.50Hz
Power Factor Range: -0.8~+0.8
Max. AC Output/Input Power (Bypass mode): 2300WMax. AC Output/Input Current (Bypass mode): 10A

System
Overvoltage Category: II(DC)III(AC)
Ingress Protection: IP65
Operating Temperature: -20~55
Protection Class: I
Inverter Topology: Isolation
Weight: 26kg
Dimension: 485x235x282mm
