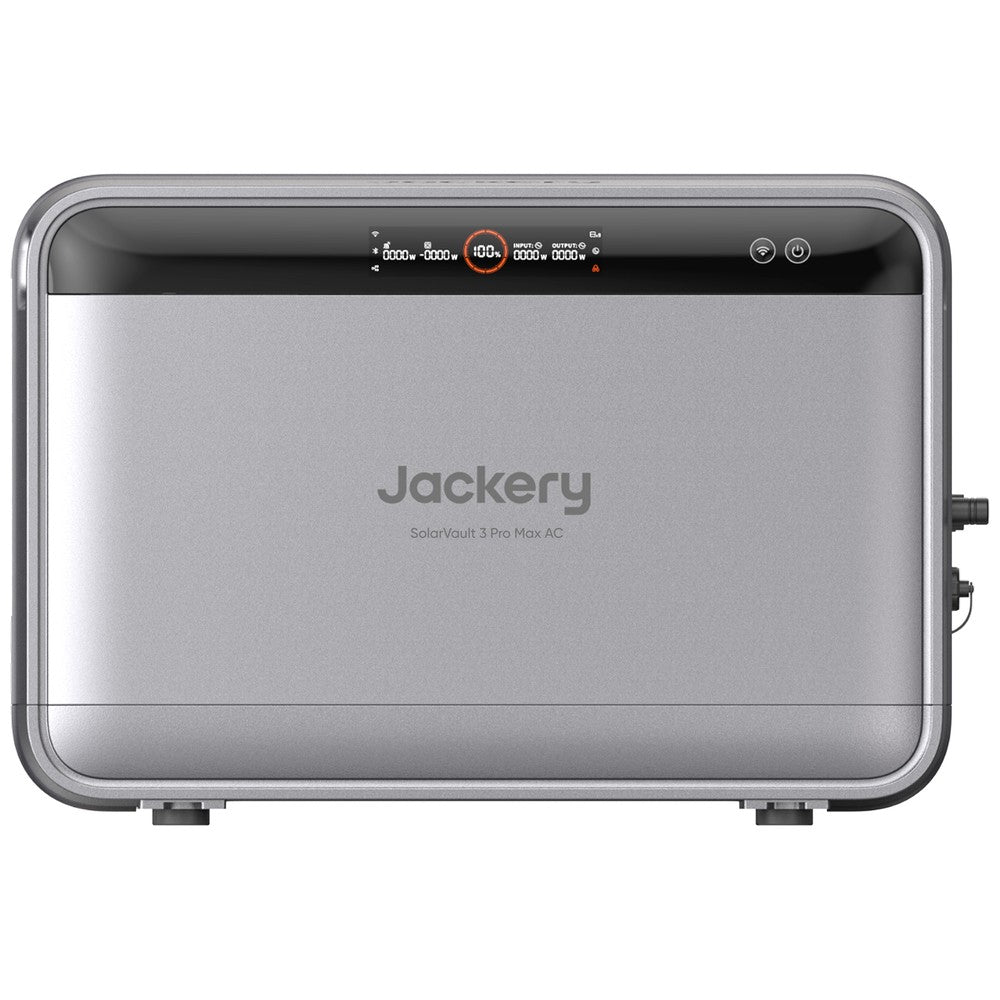

Jackery SolarVault 3 Pro Max AC Solar Energy Storage Power Station

Please note: This product must be hardwired and fitted by a qualified registered electrician.

The Jackery SolarVault 3 Pro Max AC Solar Energy Storage Power Station is a part of a new generation of modular all-in-one solar storage systems. With integrated inverter and LiFePO4 battery technology, the series combines high PV performance, scalable storage, and intelligent energy management in one compact solution. The modular system starts at 2.52 kWh and can be expanded to 15.12 kWh to meet increasing household energy needs.

The SolarVault 3 Pro Max AC model is configured as a dedicated storage-only solution without PV input and also supports up to 2,500 W output power and AC coupling, offering flexible expansion for residential PV setups.

AI-Powered Energy Management and Advanced Safety
At the core of the system is AI-based energy management that analyzes solar generation, consumption, battery status, and dynamic electricity tariffs in real time. Through integration with platforms such as Nordpool, Tibber, and Rabot, the system charges during low-price periods and discharges during peak tariffs to optimize energy costs.

Safety and durability are ensured through LFP battery cells, comprehensive protection mechanisms, temperature monitoring, aerosol fire suppression, and IP65-rated housing for operation from 20 C to 55 C. The Jackery app provides real-time monitoring and energy optimization features.

Specifications
Battery
Battery Type: Lithium Iron Phosphate
Battery Rated Voltage: 41.6Vd.c.
Battery Voltage Range: 32.5~ 45.5Vd.c.
Max. Charging/Discharging Current: 46A/48.8A
IEC Code: IFpR41/136/[3P13S]M/-20+50/90
Total Energy: 2520Wh
Total Capacity: 60.6Ah

AC Input/Output (On-Grid Terminal)
Max. AC Output Power: 800W/1500W/2500W
Max. AC Output Apparent Power: 800VA/1500VA/2500VA
Max. AC Output Current: 3.5A/6.5A/10.9A
Max. AC Input Power: 2990W
Max. AC Input Apparent Power: 2990VA
Max. AC Input Current: 13A
Rated Voltage/Frequency: L+N+PE230Va.c.50Hz
Power Factor Range: -0.8~+0.8
Max. AC Input Power (Bypass mode): 2990W
Max. AC Input Current (Bypass mode): 13A

AC Input/Output (Off-Grid Terminal)
Max. AC Input Apparent Power: 2500W*
Max. AC Input Apparent Power: 2500VA
Max. AC Input Current: 10.9A
Max. AC Output Apparent Power: 2500W*
Max. AC Output Apparent Power: 2500VA
Max. AC Output Current: 10.9A
Rated Voltage/Frequency: L+N+PE230Va.c.50Hz
Power Factor Range: -0.8~+0.8
Max. AC Output/Input Power (Bypass mode): 3680W
Max. AC Output/Input Current (Bypass mode): 16A

System
Overvoltage Category: II(DC)III(AC)
Ingress Protection: IP65
Operating Temperature: -20~55
Protection Class: I
Inverter Topology: Isolation

*: This port supports up to 2500W of input power when the product is connected to one or more battery packs. Without an external battery pack, the internal battery supports up to 1800W of input power through this AC port.

*: This port delivers up to 2500W when the product is connected to one or more battery packs. Without an external battery pack, the internal battery supplies up to 1600W through this AC port.
