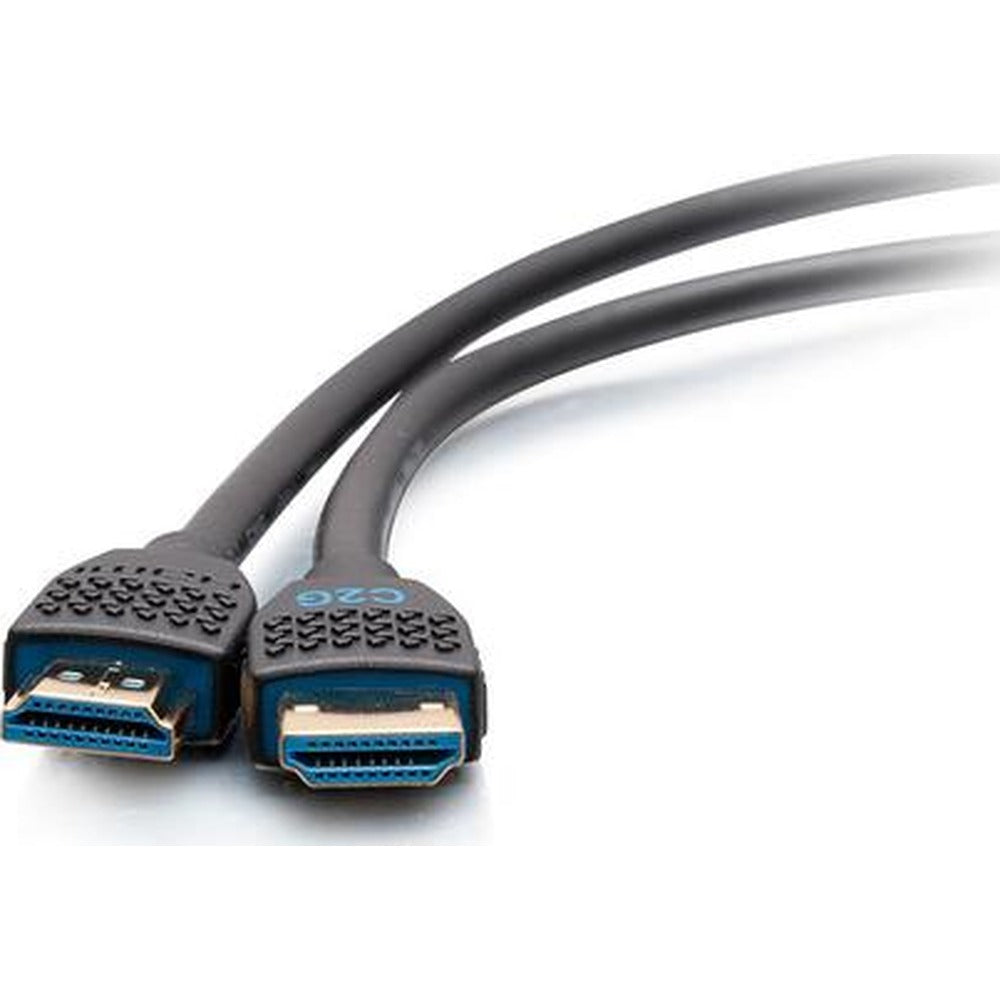

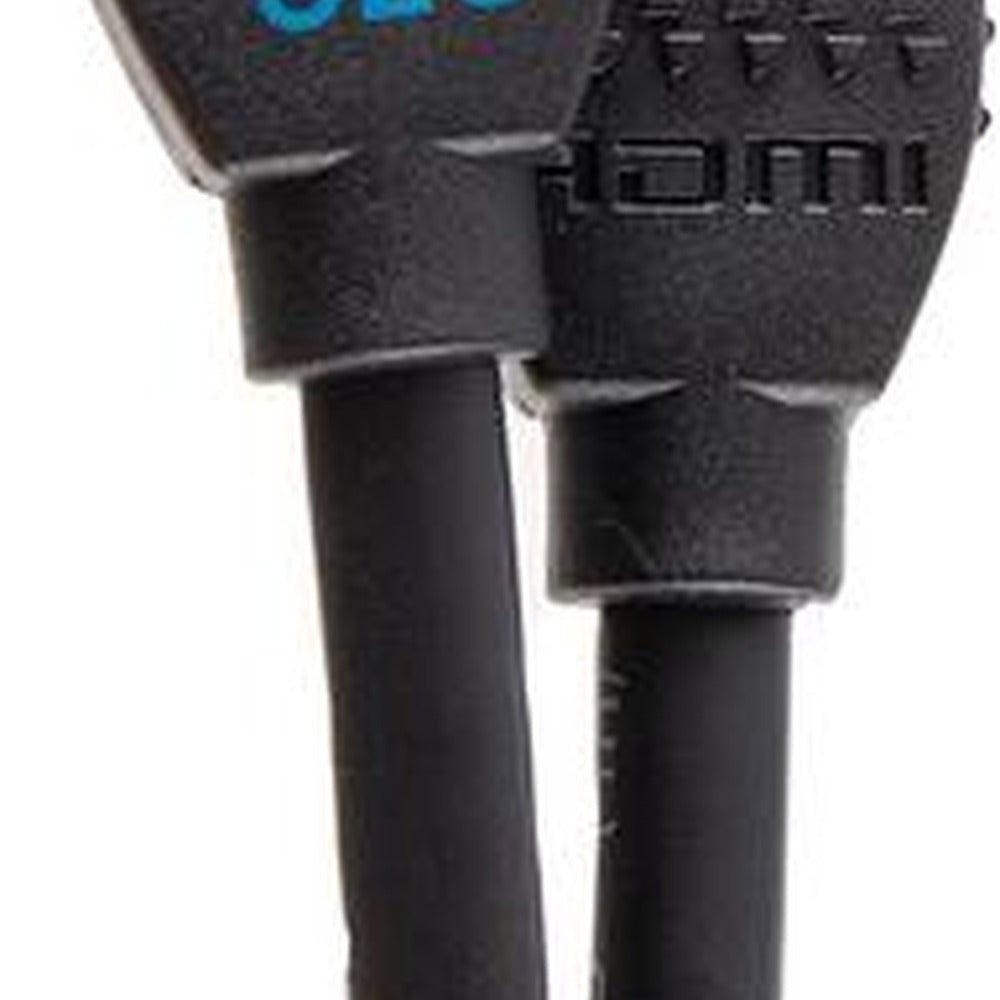

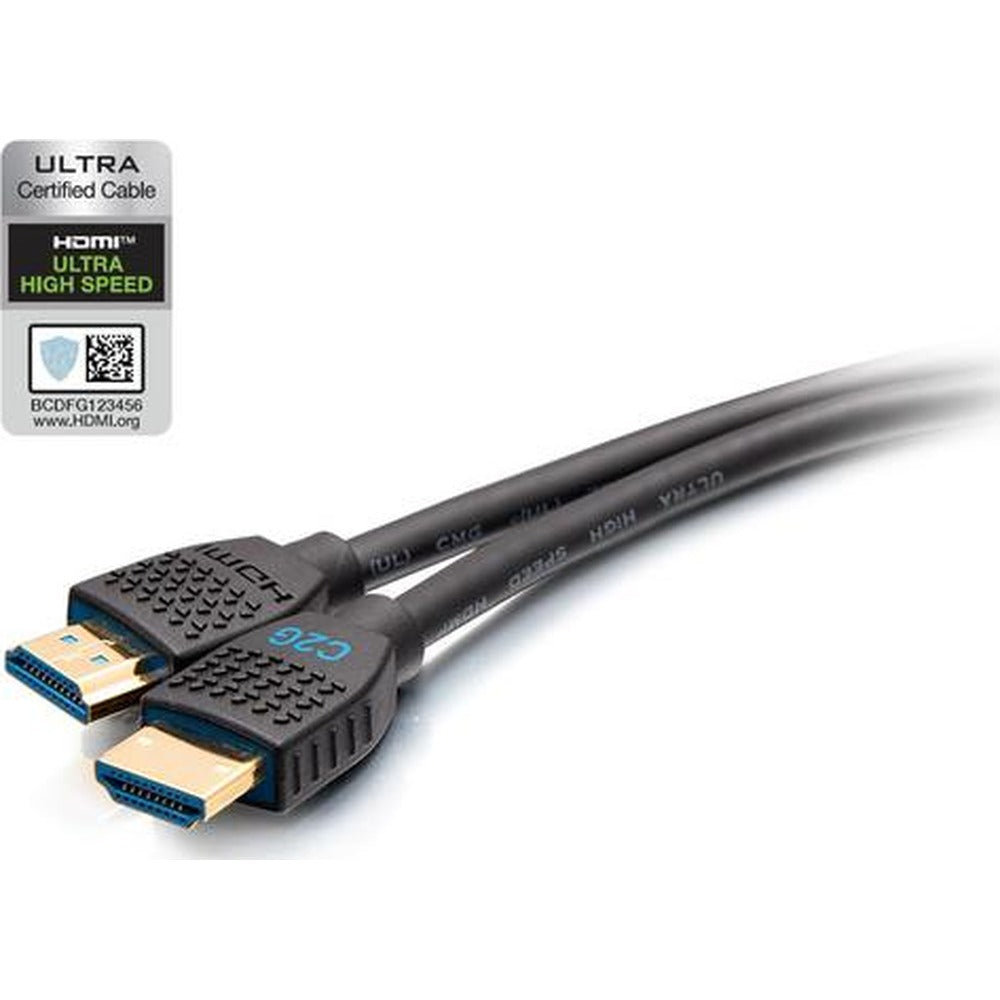

C2G - LegrandAV 6ft PS Ultra High Speed HDMI Cbl-8K60Hz

C2G Performance Series Ultra High Speed HDMI Cables are ideal for computers game consoles and displays requiring high bandwidth solutions and video resolutions up to 8K - perfect for high-resolution applications in video production broadcasting gaming and other business and consumer applications.

These Ultra High Speed HDMI Cables support a super immersive viewing experience with resolutions up to 8K four times as many pixels that 4K offers. Ultra-fast motion images from fast-action videos gaming and VR applications are crisp and sharp with the 4K 120hz capability. Other resolutions are also supported including 5K and 10K for commercial AV industrial and specialty usages. The 48Gbps bandwidth allows higher resolutions faster frame rates and enhanced audio and media features.

Dynamic HDR optimizes displayed video on a scene-by-scene or even a frame-by-frame basis and provides an extended contrast range providing darker blacks and brighter whites and greater image detail in all color spaces of the image. In addition enhanced Audio Return Channel (eARC) is supported an evolution of the previous Audio Return Channel (ARC) which now supports the latest audio formats up to 192kHz 24-bit and uncompressed 5.1 and 7.1 and 32-channel uncompressed audio.

The in-wall rated jacket means keeping cable clutter off the floor while safely running it through the wall. Commercial-grade connectors that feature compact overmolding for high-density environments integrated finger grips on the top bottom and sides for easy insertion and removal. The gripping connector shells have 2x port retention to keep your devices connected. The gold-plated connectors on the cables allow for better shielding increased electrical conductivity and durability.

These cables have also been tested and certified to ensure low EMI to reduce the possibility of interference with wireless networks streaming media players Bluetooth devices and mobile phones. Lastly this tested and certified ultra high speed cable is backed by a lifetime warranty.

Signal Specifications

• HDMI Resolutions up to 8K (7680 × 4320) at 60Hz 4K (4096 x 2160) at 120Hz and 10K

• Signal Bandwidth: 48Gbps

• HDMI Audio: Uncompressed 5.1 and 7.1; 32-Channel Uncompressed Audio

Electrical Specifications

• Voltage Rating: 30V

• Temp: Connector: Temp Rating: 220°C

• Cable: Temp Rating: 75°C

• Conductor Resistance: 3ft: 2Ω; 6ft: 3Ω; 10ft: 4Ω; 12ft: 5Ω

• Insulation Resistance: 10MΩ

• Withstand Voltage: AC 300V DC 300V

• Differential Data Input Voltage: 4.8V to 5.3V

• Differential Data Output Voltage: 4.7V to 5.3V

Physical Specifications

• Operating Temperature: -20°C to +75°C; 85% RH (Non-Condensing)

• Storage Temperature: -10°C to +55°C; 85% RH (Non-Condensing)

• Tensile Strength: 100N

• Minimum Bend Radius: 48mm

• Minimum Bend Radius: 64mm (C2G10456 only)

• Cable Jacket Ratings: CMG FT4

• Connector Gripping Force: HDMI Withdrawal Force: 9.8N/1.0kgf Min; 39.2N/4.0kgf Max

• Connector Gripping Force: HDMI Insertion Force: 44.1N/4.5kgf Max

Physical Characteristics

• Housing: PVC Molding Black; Front of Housing Around Connector: Blue; C2G Logo: Blue

• Connector Insulator: Blue

• Jacket: PVC Black

• Jacket OD: 6.0mm

• Conductor AWG: 30AWG

• Conductor AWG: 26AWG (C2G10456 only)

• Connector: HDMI Type A Male Connector Metal Shell Gold Plated Electrical Contact Copper; Alloy Gold Plated 5u’

• Product is CE Marked and Conforms to 2011/65/EU ROHS 2
